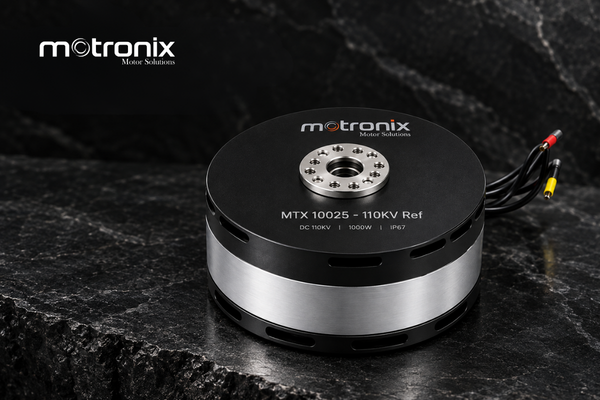

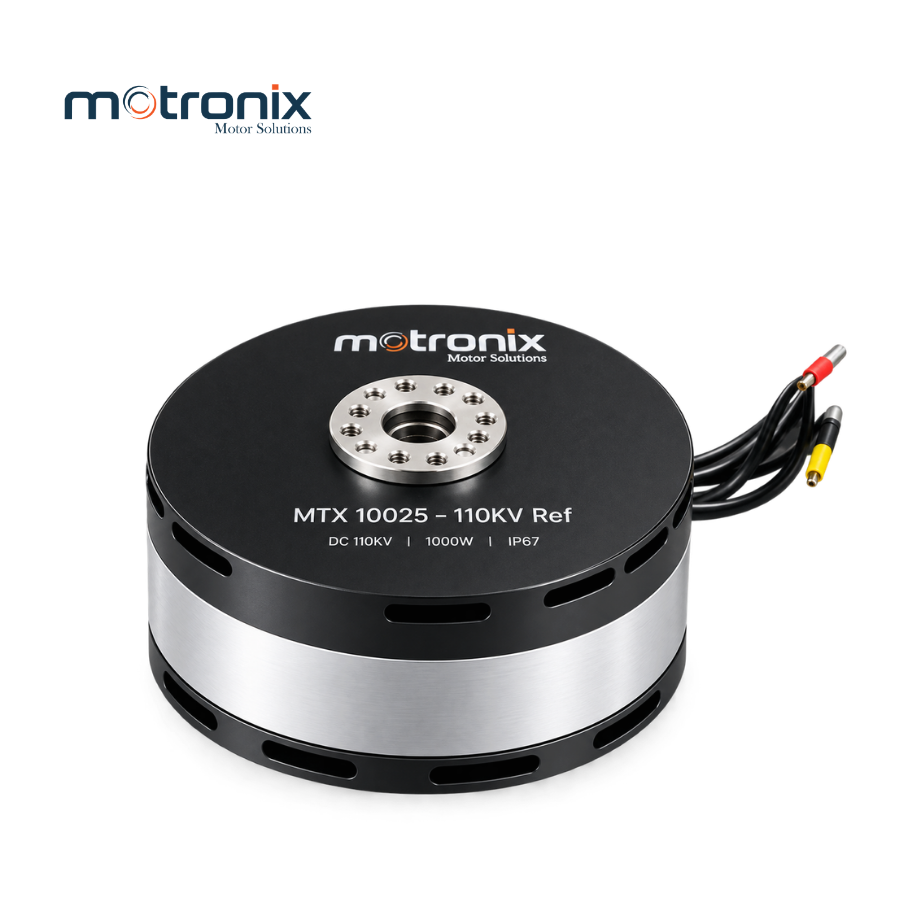

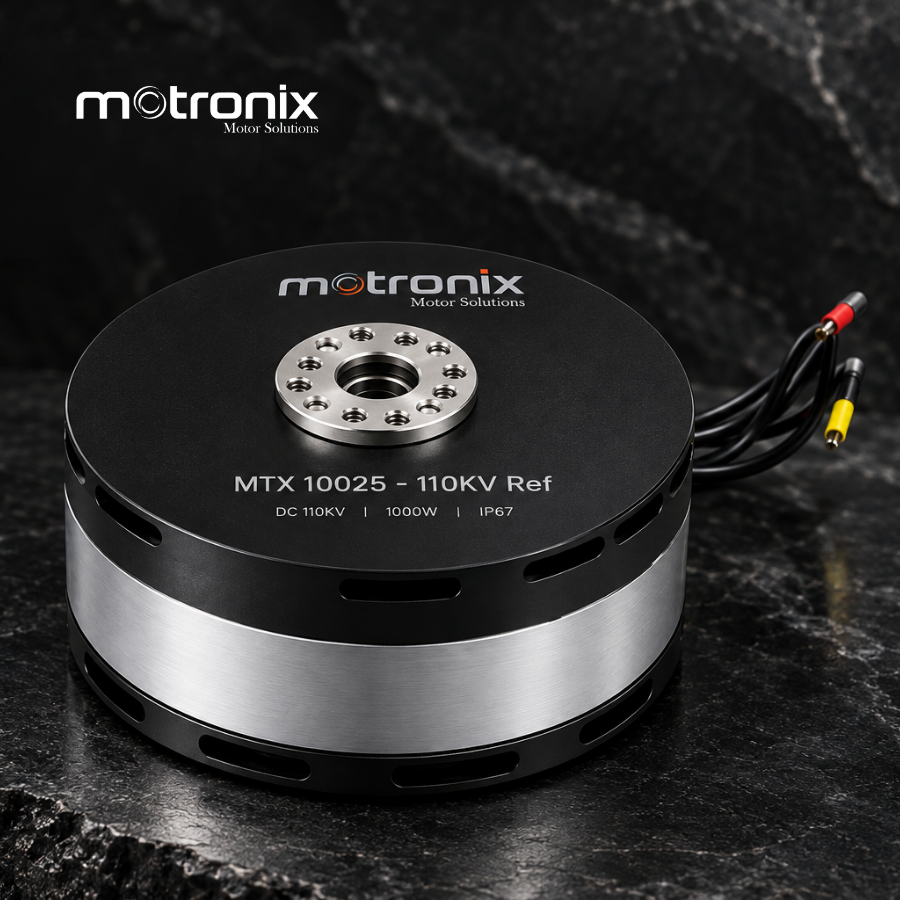

The MTX 10025 – 110KV is a high-performance motor designed for heavy-lift and industrial UAV applications. With a weight of less than 950g and a motor size of approximately 100 × 25mm, it features a 24N28P industrial configuration and operates on 12S LiPo power. The motor supports a peak current of less than 90A and delivers up to 4500W of maximum power for 180 seconds, with a maximum thrust of approximately 10–12. It is suitable for heavy-lift UAVs in the 15–25kg payload class, logistics and delivery drones, surveillance and security UAVs, mapping and inspection UAVs, and industrial agricultural UAVs.
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Motor Name | MTX 10025 - 110KV Ref |
| Weight | <950g |
| Motor Size (D × L) | ~ 100 × 25mm |
| Configuration | 24N28P (typical industrial) |
| Voltage | 12S S LiPo |
| Peak Current (180s) | <90A |
| Max Power (180s) | 4500W |
| Max Thrust | ~ 10–12 |
| Applications | Heavy-lift UAV (15–25kg payload class) Logistics & delivery drones, Surveillance & security UAV, Mapping & inspection UAV, Industrial agriculture UAV |
MOTRONIX VIET NAM CO., LTD
📍 Address: Lot TD253, Lai Xa Industrial Cluster Service Area, Hoai Duc Commune, Hanoi City, Vietnam
📞 Phone: +84- 979 731 229
☎️ Tel: 024 665 68006
📧 Email: infor@motronix.vn
MTX 10025 - 110KV Ref
