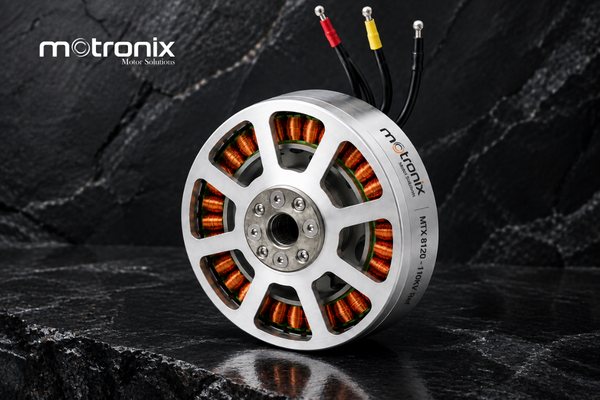

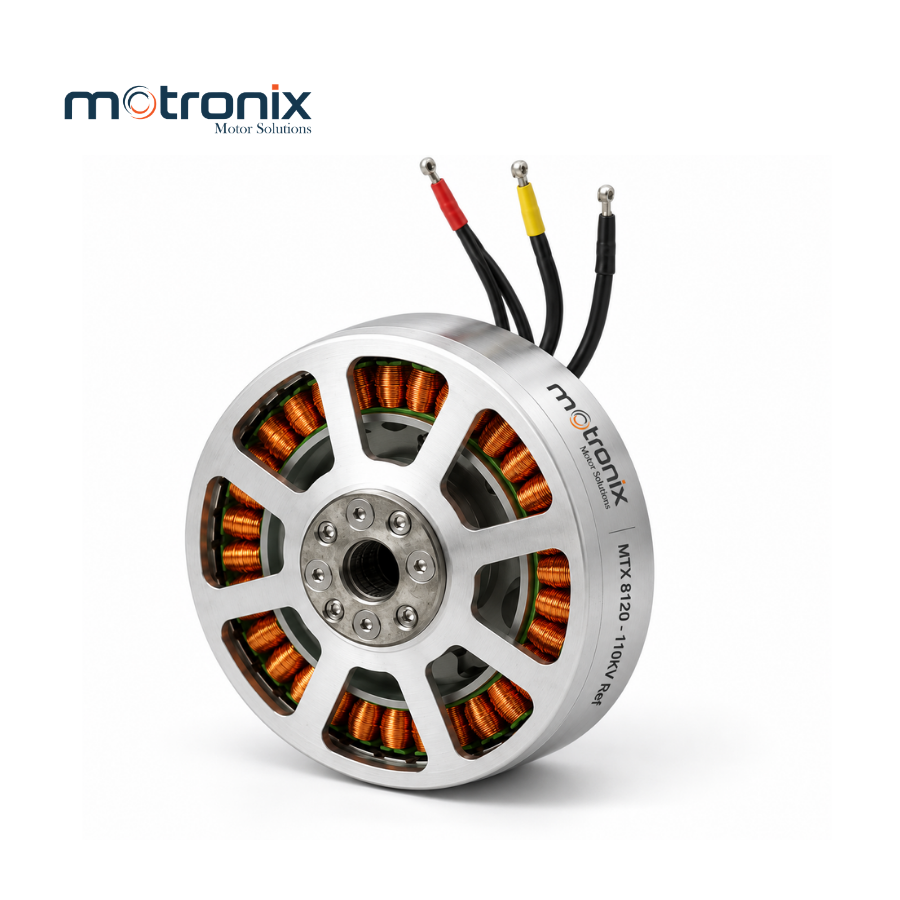

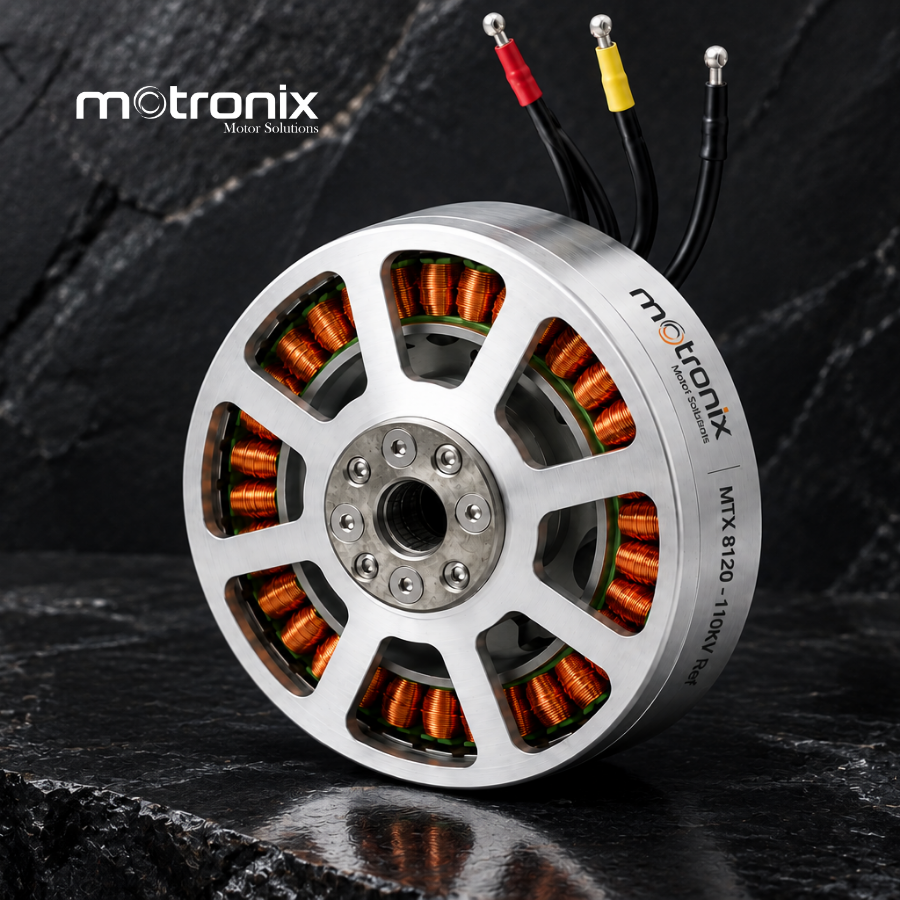

The MTX 8120 - 110KV Ref is a high-performance motor designed for demanding UAV applications. With a weight of less than 450g and a motor size of approximately 81 × 20mm, it features a 24N28P / 36N42P industrial configuration and operates on 12S LiPo power. The motor supports a peak current of 38A and delivers up to 1800W of maximum power for 180 seconds, with a maximum thrust of approximately 7–8. It is well suited for 10–20L agricultural UAVs, mapping and surveying drones, surveillance UAVs, and industrial inspection UAVs.
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Motor Name | MTX 8120 - 110KV Ref |
| Weight | <450g |
| Motor Size (D × L) | ~81 × 20mm |
| Configuration | 24N28P / 36N42P (Industrial Type) |
| Voltage | 12S LiPo |
| Peak Current (180s) | 38A |
| Max Power (180s) | 1800W |
| Max Thrust | ~7–8 |
| Applications | Agricultural UAV (10–20L class), Mapping & Survey Drones, Surveillance UAV, Industrial Inspection UAV |
