MTX 6025 - 220KV Ref

Leave Your Details for a Free Consultation

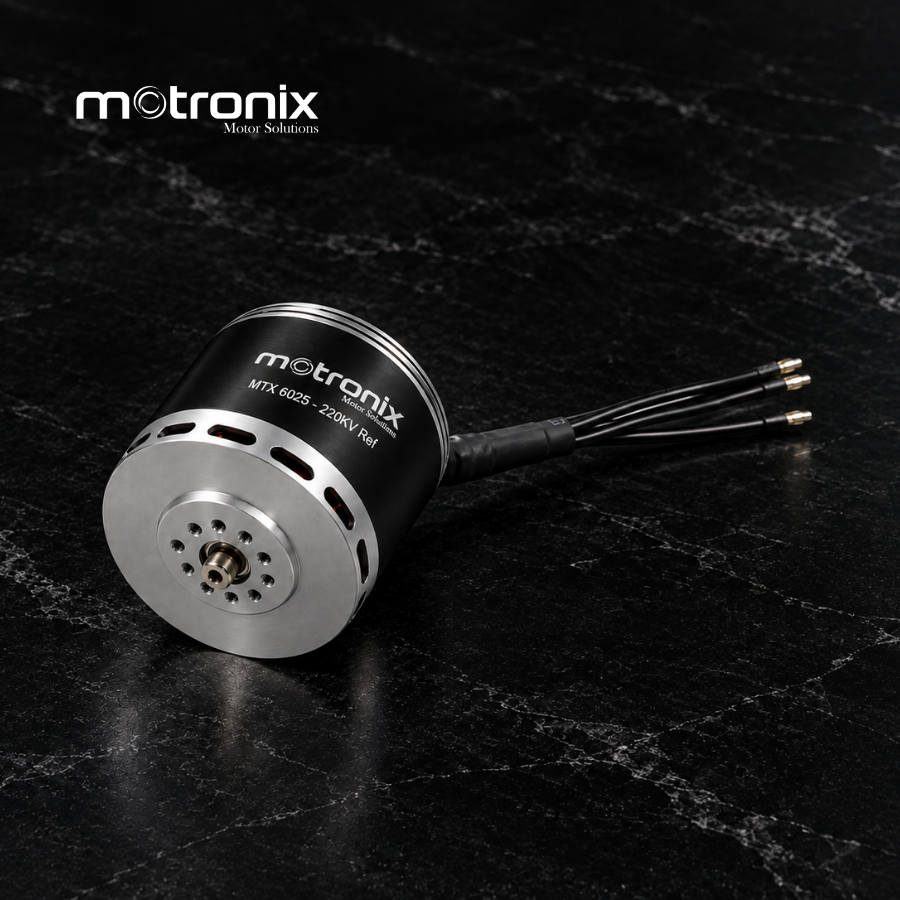

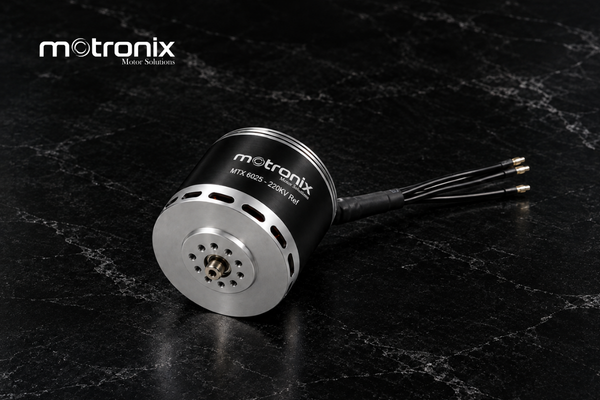

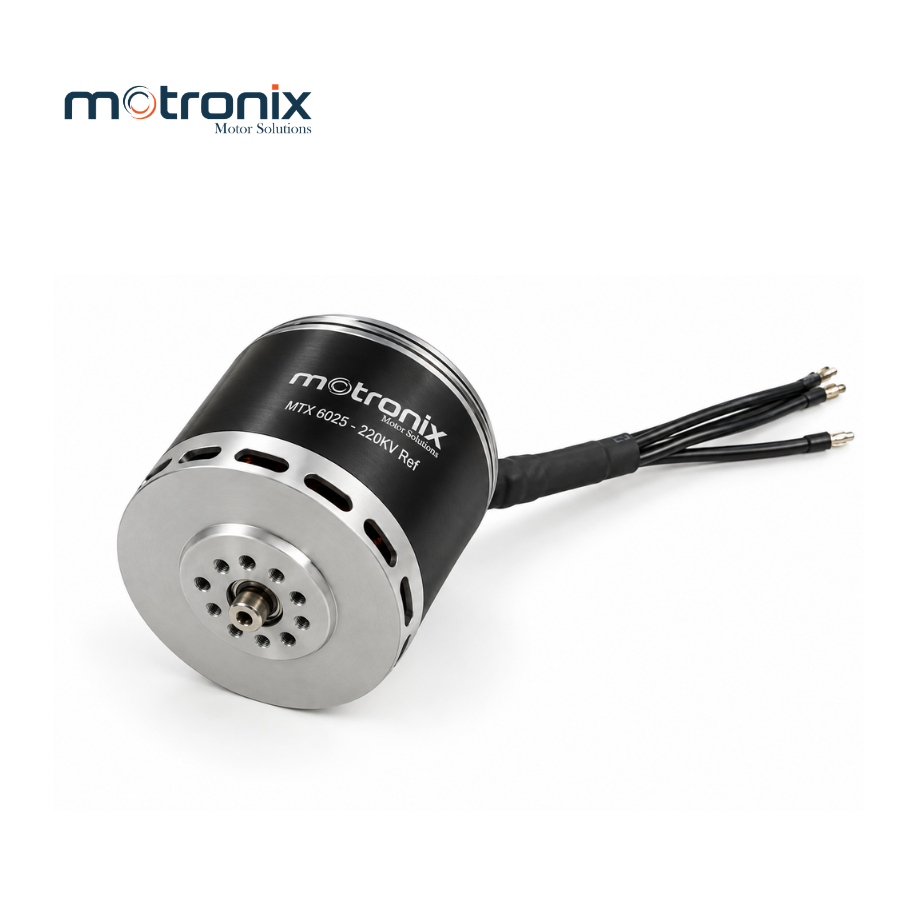

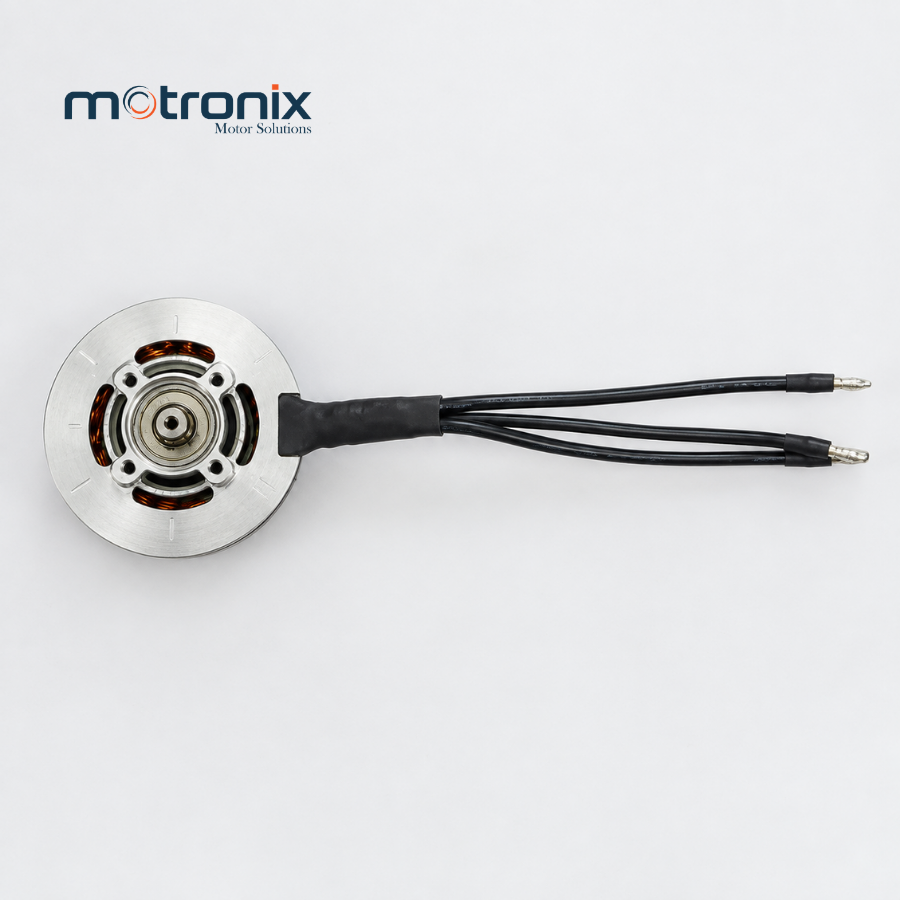

The MTX 6025(7215) - 220KV is a high-performance motor designed for medium-duty UAV applications, offering a compact 66 × 56mm configuration and a lightweight design of ≤580g. Operating with a 12S LiPo power system, the motor supports a peak current of 85–95A and delivers 3,600–4,000W of maximum power, making it suitable for agricultural drones, inspection UAVs, mapping & surveying UAVs, and logistics drones with light payloads.

TECHNICAL SPECIFICATIONS	DETAILS
Motor Name	MTX 6025 - 220KV Ref
Weight	≤580g
Motor Size (D × L)	~66 × 56mm
Configuration	24N28P
Voltage	12S S LiPo
Peak Current (180s)	85–95A
Max Power (180s)	3600–4000W
Applications	Medium-duty UAV, Agricultural drones, Inspection UAV, Mapping & survey UAV, Logistics drone (light payload class)
